Hyperspectral Imaging System
BlackBox
Measure samples and essential traits with the best of both technology worlds.
Hyperspectral Imaging System
Features
The easiest way to obtain samples and detect traits with hyperspectral & RGB-sensor combination.

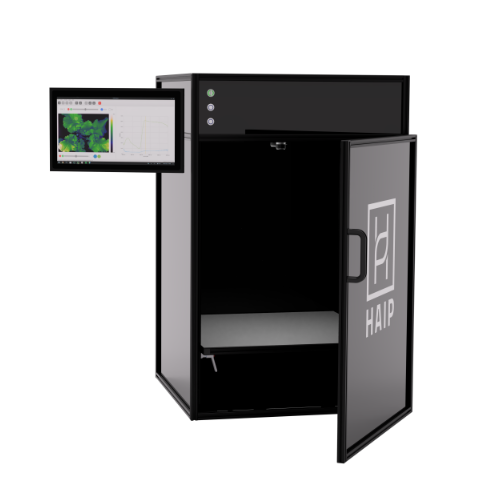

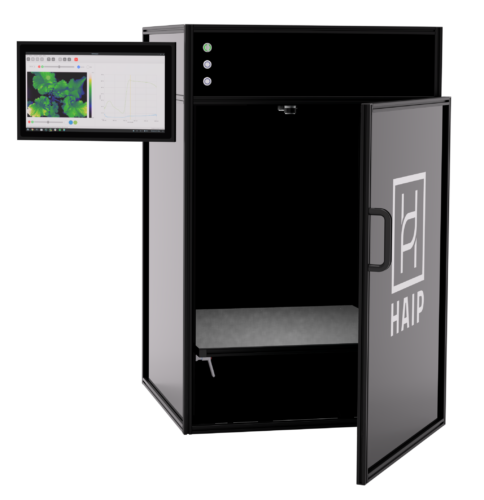

BlackBox is an intelligent imaging system for laboratories, research, and industry. It offers is configurable for
many applications or sample types. Benefit from a super simple workflow that can be done by everyone.
Reproducible
The BlackBox enables standardized and repeatable data acquisition, as well as automated trait extraction through imaging and AI-based analysis.
Easy To Use
Non-invasive measurement for a wide range of different sample types. Easy to use for everyone, save time and effort in documentation tasks.
Intelligent Imaging
The multisensor-system is based on reliable hardware components technology and advanced machine-learning-based analytical software.
Start with HSI Today!
BlackBox
Specifications
VNIR (500-1000 nm) spectral camera
Spectral resolution 1nm, 500 bands
High-resolution industrial RGB camera
Configurable according to your needs
Controlled environment
Defined light source, defined background, 15" touch screen display
Advanced image processing algorithms
Intuitive graphical user interface, access to raw date available
VISIT US AT <> 13-16 Sept: Spectro Expo 2022 (Rome) 04-06 Oct: VISION 2022 (Stuttgart)
Hyperspectral ImaginG
Applications
Hyperspectral Imaging Solution
Sample Data
BlackBox is based on a VNIR linescanner, but there is no sensor movement needed during image acquisition to get a full HSI data cube. Unsure if spectral imaging solves your application? Get in touch with us and send your sample to HAIP Solutions for a measurement in our lab.

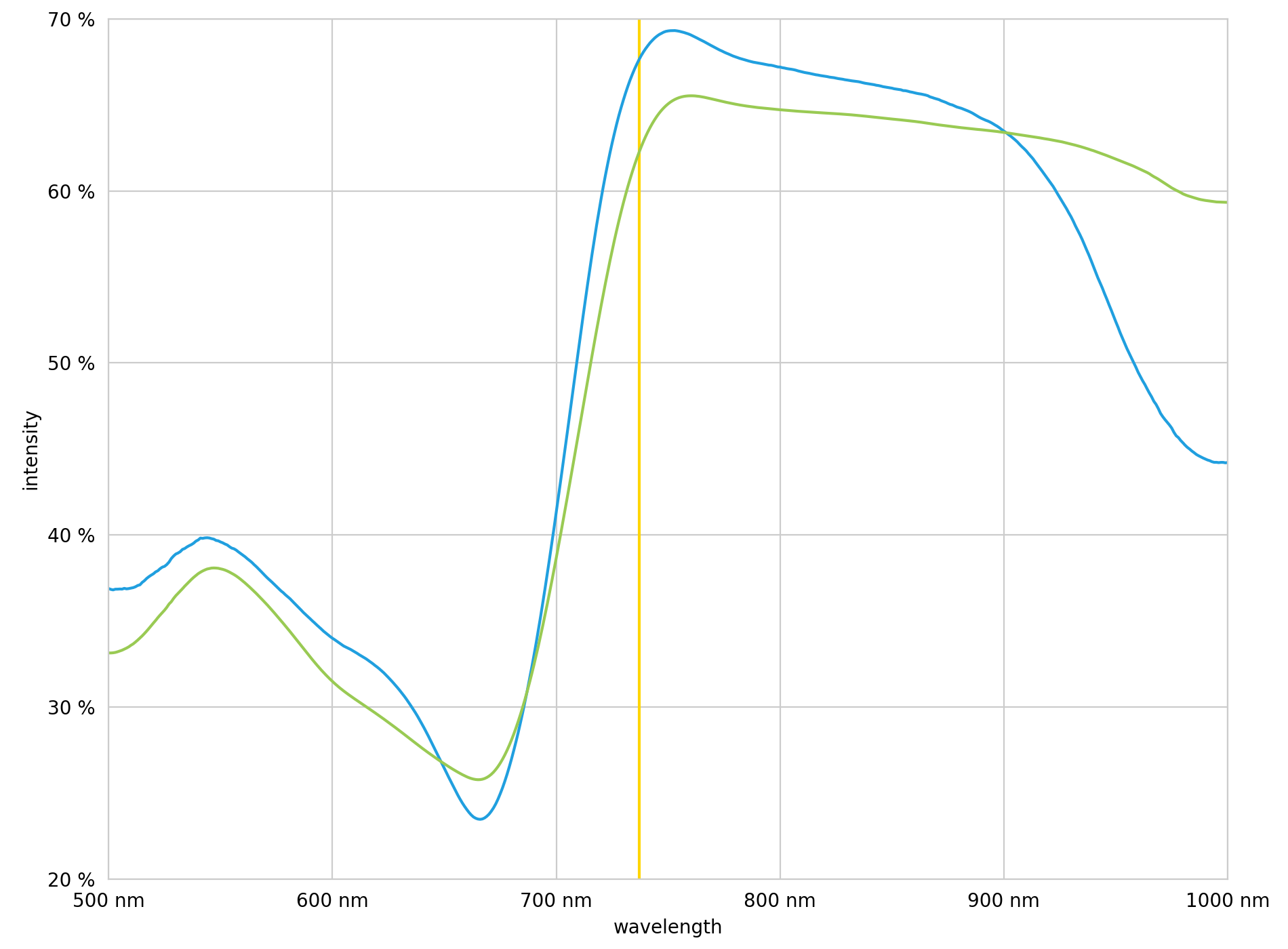

BlackBox True Color, native resolution, with halogen lighting unit. The corresponding spectra inside the circles are given on the right.
High spectral quality with low noise. The diagram above shows the standard deviation of all averaged pixels inside each drawn circle.
Hyperspectral ImaginG System
Configurable Dimensions
With our special VNIR line scanner your use case can benefit from a compact measuring setup.
Adaptable for your application, precisely fitting – according to your exact needs
