Hyperspectral Camera Drone
Hyperspectral Camera drone
REady to Fly
The BlackBird V2 camera was especially designed for easy integration with DJI drones from M300 & M350 RTK series.
Via the Skyport V2 interface all connections are established with a twist of your hand.
Full gimbal control
BlackBird V2 is based on a hyperspectral linescanner, but there is no need to move the sensor during image acquisition to get a full hyperspectral data cube. With this feature you can also move to a off-nadir position and take images.
Easy To Use
Thanks to the RGB sensor of the hyperspectral camera, a livestream can be displayed on the remote control during the flight. With this feature you get two images (RGB & HSI) at the same time with similar spatial dimensions.
Intelligent Imaging
Additional pre-processing on camera is possible, as the camera has a build in GPU (NVIDIA Jetson). Overview images for the evaluation of correct exposure settings are processed automatically. Images are saved on an external USB-A stick.
Start with HSI Today!
BlackBird V2
Specifications
TWO SEPERATE SENSORS
High quality RGB-livestream + RGB & HSI images simultaneously
VNIR (500 - 1000 NM)
100 spectral bands, high signal-to-noise ratio in NIR range
SMART HYPERSPECTRAL LINE-SCANNER
Two modes: Hover & Line-Scan; NVIDIA Jetson GPU integrated
DJI SKYPORT V2 INTERFACE
Ready to fly within seconds, connection just with a twist of your hand
DATA STORAGE ON 265 GB USB-A STICK
Plug the stick directly into your computer's USB-A port for data transfer
BlackBird V2
Photo Gallery
BlackBird V2 Live-Demo

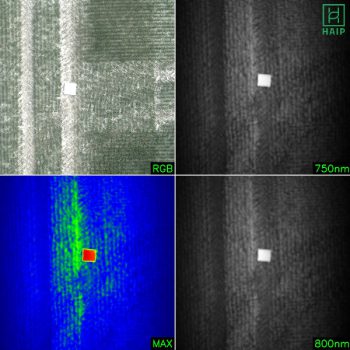

Overview image for checking the exposure
settings directly on the remote controller

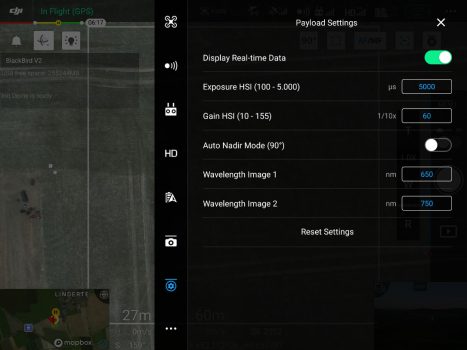

DJI Pilot Software Sreenshot –
Payload Settings Menu for BlackBird V2
Hyperspectral Camera Drone
Partnership
HAIP Solutions is now an official partner of UgCS, the leading professional drone flight planning software by SPH Engineering. With this new partnership, we bring precision mission planning to hyperspectral drone operations, helping you capture reliable, high-quality data more easily than ever before. With UgCS, BlackBird V2 users benefit from automated, terrain-following flight missions, optimized flight paths for hyperspectral imaging and full control over altitude, speed and sensor requirements.
HAIP Solutions, as an official reseller of UgCS, now offers these powerful features alongside our BlackBird V2 system. Together, they ensure consistent, repeatable results for applications in agriculture, environmental monitoring and research.
Hyperspectral Camera Drone
Integrated 4K RGB Camera
The additionally integrated RGB sensor in the BlackBird V2 camera acquires 4K RGB images simultaneously with the HSI images. This function is ideal for creating orthomosaics, digital elevation models and much more without the need for additional resources.
Orthomosaic for successful environmental monitoring
– Peatland site 6 ha, acquired 30 m above ground level
Orthomosaic for precise agricultural analyses
– Agricultural field 14 ha, acquired 70 m above ground level
Hyperspectral Camera Drone
HSI Remote Sensing
The collaboration between ReSe Applications LLC and HAIP Solutions has resulted in advances in hyperspectral remote sensing. The BlackBird V2 camera, combined with the PARGE® and DROACOR® software applications, enables high-precision positioning of hyperspectral images and accurate atmospheric correction. The HAIP BlackBird V2 camera also acquires high-resolution RGB images for orthomosaic and digital elevation model generation. Multiple critical datasets can be efficiently produced in a single flight campaign.
Hyperspectral Imaging UAV
Applications
Hyperspectral Camera Drone
Sample Data
BlackBird V2 is based on a VNIR linescanner, but there is no sensor movement needed during image acquisition to get a full HSI data cube. Unsure if spectral imaging solves your application? Get in touch with us and send your sample to HAIP Solutions for a measurement in our lab.
