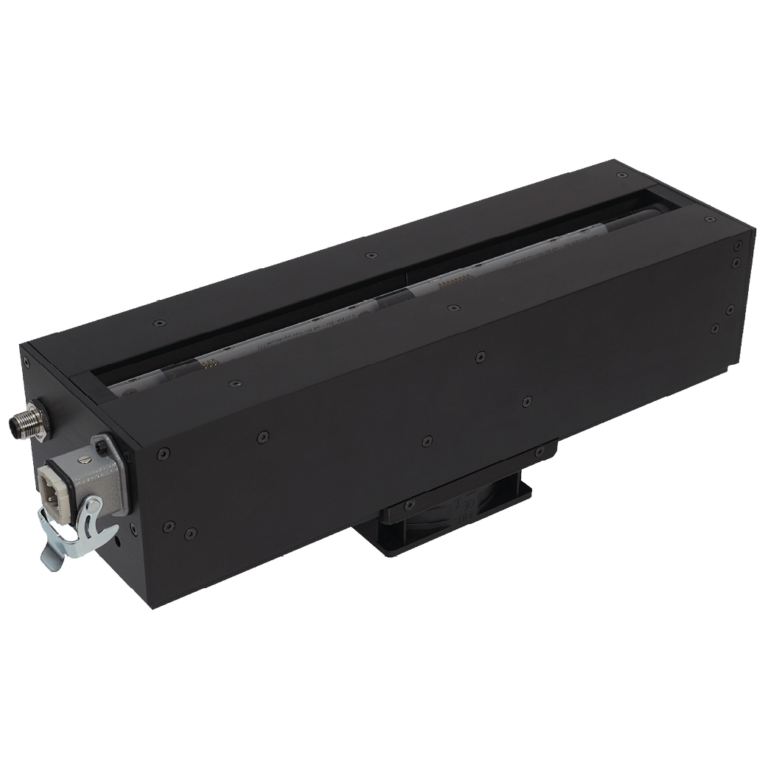

BlackBright VNIR LED Bar
Broadband LED illumination bar
The Blackbright VNIR LED Bar is a illumination unit designed for industrial integration and developed for the BlackIndustry VNIR camera.
Broadband LED illumination bar
Borad Spectral Range
HAIP Solutions BlackBright VNIR LED Bar is a line light illumination bar designed for hyperspectral imaging, integrating special Broadband-LED technology.
The use of LED technology enables a long service life and the elimination of thermal light sources, which are more susceptible to faults and have a shorter service life. As an external lighting source, the BlackBright Bar is ideal for hyperspectral sorting and inspection applications.
Compact design
The BlackBright VNIR LED Bar presents a compact and modular design with an arrangement of individual elements each 150 mm long. Consequently, there are variable line lengths from 300 to 1350 mm available on request.
Easy to use
The broadband LED illumination bar can be configured via a PC using PWM modulation, thereby generating uniform illumination over the entire illumination area. It is configured and supplied with power via an industrial plug.
Steady light distribution
The light intensity can be dimmed segment by segment via a software controller interface. This dimmable light intensity and the homogeneous light distribution enable very precise imaging in the spectral range 430 – 1050 nm.
Specifications
Built for VNIR hyperspectral imaging
BROADBAND LED ILLUMINATION BAR
Variable line lengths from 300 to 1350 mm available
SPECTRAL RANGE (430 - 1050 NM)
Broad and stable spectral distribution in the range of 430 nm - 1050 nm
INDUSTRIAL CONNECTORS
Power supply via Harting HAN Q 5/0-F
INDUSTRIAL CONNECTORS
Communication via an industrial RS485 port
Technology
LED
Spectral Range
430-1050 nm
Lifetime
25 000 h
Housing
Anodised Aluminium
Size
350 mm x 108 mm
Temperature (operation)
-10 – +50°C
- Get all technical specifications.
Spectral Response
Sample data
BlackBright Bar is a broadband illumination bar with all the needed components, designed for the BlackIndustry VNIR V2 camera.
