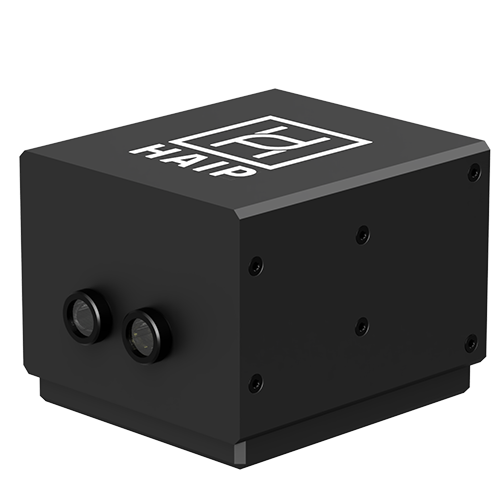

Hyperspectral Camera
BlackBullet V2
Smart and Compact VNIR hyperspectral camera with
integrated 4K RGB camera for easy data Acquisition
Hyperspectral camera
Various Platforms
HAIP Solutions BlackBullet V2 VNIR Sensor is the base model for a whole range of applications such
as UAVs, field and lab measurements on tripods or mounted on scanning rail systems.
If you need external lighting, BlackBullet V2 is optimized for combined use with separate available broadband LED lighting unit BlackBright.
Compact Setup
BlackBullet V2 is based on a hyperspectral linescanner, but there is no need to move the sensor during image acquisition to get a full hyperspectral data cube. With this feature, your use case can benefit from a compact and lightweight measuring setup.
Easy To Use
Thanks to the 4K resolution RGB sensor of the hyperspectral camera, a livestream can be displayed to see what area you are actually imaging. Camera control works via Gigabit Ethernet, which opens up to a wide range of mounting options.
Intelligent Imaging
Additional pre-processing on camera is possible, as the camera has a build in computing unit. If needed, the desired spectral ranges can also be individually selected, to reduce data-amount. Images are saved on the internal 256 GB storage.
Start with HSI Today!
BlackBullet V2
Specifications
TWO SEPARATE SENSORS
4K RGB camera integrated -
RGB & HSI images simultaneously
VNIR (500 - 1000 NM)
250 spectral bands, great signal-to-noise ratio in NIR region
Mounting plate
BlackBullet V2 comes with a mounting plate with different type of threads
SMART HYPERSPECTRAL LINE-SCANNER
Two modes: Snapshot & Line-Scan;
NVIDIA Jetson GPU integrated
Camera control via GigE

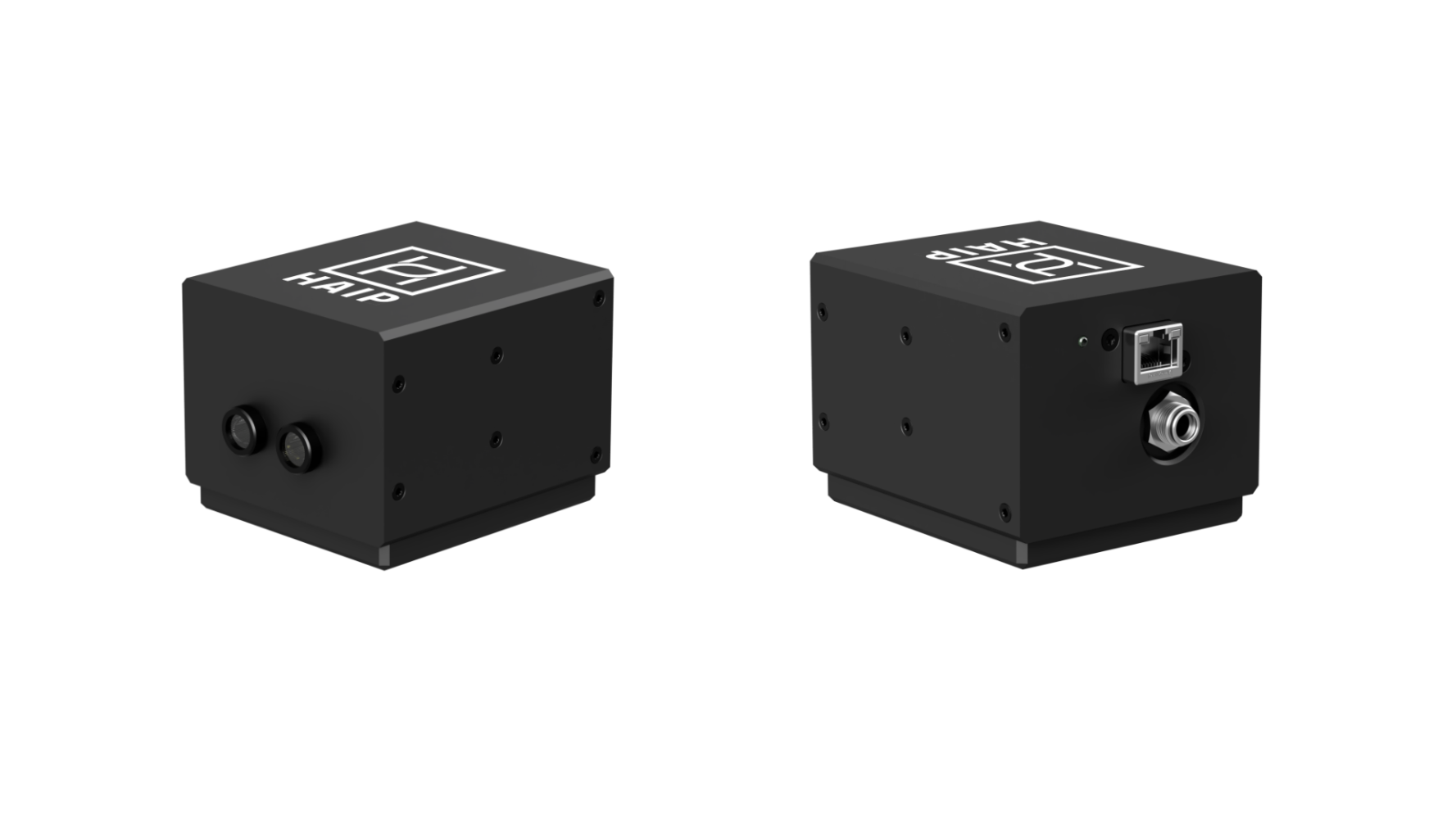

GigE and power supply port on the back of the camera.
Data Acquisition
BlackStudio Software
BlackBullet V2 comes with a full integration into HAIP Solutions BlackStudio software for capturing data and analyzing right on the spot after data acquisition. A separate API in C++ and Python is available as well to integrate the camera into your own workflows.
Hyperspectral Camera

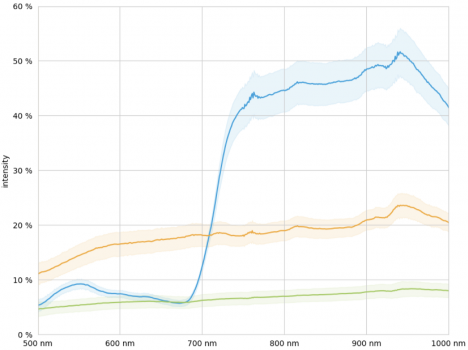

Sample Data
BlackBullet V2 is based on a push-broom linescanner, but there is no sensor movement needed during image acquisition to get a full HSI data cube, due to our special capturing technology.
Unsure if spectral imaging solves your application? Get in touch with us and send your sample to HAIP Solutions for a measurement in our lab.
