Hyperspectral LED – area illumination
BlackBrightVNIR LED Area
Broadband-LED area array illumination designed for single-shot hyperspectral cameras
Hyperspectral LED - area illumination
Broad Spectral range

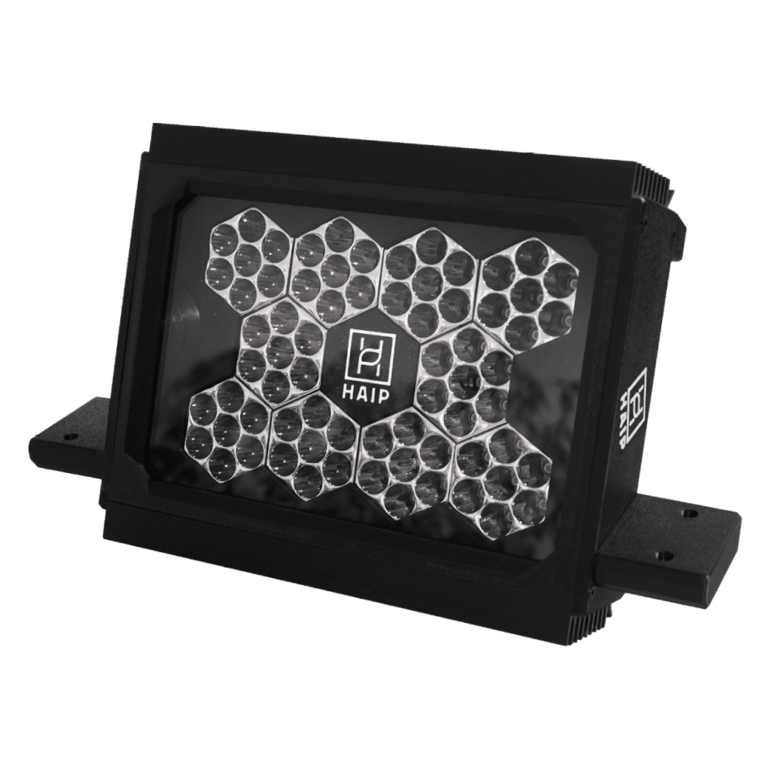

The BlackBright VNIR LED area illumination system is tailor-made for hyperspectral single-shot imaging applications. With a stable spectral distribution from 430 nm to 1050 nm, this device ensures uniform surface illumination for precise imaging. Designed to HAIP Solutions‘ exacting standards, each system consists of two identical illumination panels controlled by a central unit to ensure smooth operation.
LED Technology
The use of LED technology enables a long
service life and eliminates thermal light sources, which are prone to faults and shorter lifespans. Your measurement setup benefits from less heat development as well, reducing the risk of bad influence on your sample.
Compact design
With a working distance of approximately 50 cm from the light emission surface, the standard design illuminates an area of approximately 20 x 20 cm. Each product consists of two identical illumination panels combined through a
controller and power supply unit.
Steady light distribution
The illumination panels with the combined broadband LEDs and a special reflector technology enable very homogenous lighting conditions for spectral imaging. With dimmable intensity and even distribution, precise imaging is enabled in the 430 – 1050 nm VNIR range.
Start with HSI Today!
BlackBright VNIR LED Area
Specifications
BROADBAND-LED - AREA ILLUMINATION
Even illumination of the surface area
SPECTRAL RANGE OF 430 NM - 1050 nm
Broad and stable spectral distribution
DIMMABLE LIGHT INTENSITY
BlackBright VNIR LED Area
Photo Gallery
Talk to our Experts
Where hyperspectral imaging creates real impact
Applications
RECYCLING
HSI allows sorting systems to identify materials based on their spectral properties, enabling more accurate classification and improved recyclate quality.
FOOD INDUSTRY
Hyperspectral imaging provides detailed spectral information that supports automated quality control and more reliable inspection processes.
VEGETATION & AGRICULTURE
Hyperspectral imaging enable detailed monitoring of vegetation, allowing to analyse plant stress responses, nutrient status and growth dynamics over time.
GEOLOGY
HSI makes the identification and classification of minerals based on their spectral signatures possible, supporting more detailed material analysis.
ENVIRONMENTAL MONITORING
Hyperspectral cameras provide high-resolution spectral data that supports large-scale environmental monitoring and ecosystem analysis.
Hyperspectral LED - area illumination
Sample Data
BlackBright VNIR LED Area is a broadband LED area illumination with all the needed components, designed for the BlackBullet V2 camera.
Unsure if spectral imaging solves your application? Get in touch with us and send your sample to HAIP Solutions for a measurement in our lab.
