BlackIndustry VNIR V2
VNIR hyperspectral camera
The BlackIndustry VNIR V2 is a hyperspectral camera with 1920 px spatial resolution for industrial in-line applications.
VNIR Hyperspectral Camera
Real time spectral data
HAIP Solutions BlackIndustry VNIR V2 camera is a smart line scanning (pushbroom) visible and near-infrared hyperspectral imaging camera that allows the acquisition of real-time spectral data with very high spatial resolution of up to 1920 pixels. If you need external lighting, BlackIndustry VNIR V2 is optimised for combined use with separate BlackBright VNIR LED bar.
Outstanding Sensitivity
The outstanding sensitivity in the NIR range from 700 nm to 1000 nm is perfect for the use in industrial in-line applications. With a frame rate of 430 Hz at full frame and up to 750 Hz at ROI, the sensor is suitable for high conveyor belt speeds, ideal for sorting applications.
Easy to use
Combining superior optical design with advanced holographic transmission grating technology, highend electronics and a sensitive CMOS detector, the BlackIndustry VNIR V2 camera is an ideal tool for demanding environments.
Individual pre-processing
Data pre-processing on camera is possible, as the camera has an integrated GPU (Nvidia Jetson). All BlackIndustry series cameras are controllable via HAIP BlackStudio software, GenICam or a dedicated C++/Python API. Code samples available upon request.
Specifications
Built for industrial in-line applications
Standard C-Mount lens
Different FOV options available
VNIR (500 - 1000 nm)
Up to 250 spectral bands, great signal-to-noise ratio in NIR region
Mounting plate
BlackIndustry V2 comes with a mounting plate with both metric and imperial threads
Smart hyperspectral pushbroom camera
Up to 1920 spatixal pixels; integrated NVIDIA Jetson GPU for preprocessing
Camera control via GigE
GigE and power supply port on the back of the camera.
Spectral Range
500 – 1000 nm
Scanning method
Smart line-scanning (pushbroom)
Sensor Type
CMOS
Connection
GigE (GenICam compatible)
Housing
Anodised aluminium
Spatial Resolution
1920 px
Spectral Bands
up to 250
Frame rate (Full Frame/ROI)
430/1700 Hz
Lens Mount
Standard C-Mount
Size
147 (L) x 80 (W) x 80 (H) mm
- Get all technical specifications.
Spectral Response
Sample data
BlackIndustry VNIR V2 camera is based on a pushbroom sensor and specifically designed for industrial in-line applications. Unsure if spectral imaging solves your application? Get in touch with us and send your sample to HAIP Solutions for a measurement in our lab.
BlackIndustry VNIR V2 - Spectral Response
- Let's evaluate the right setup for your application.
Combined technology
Illumination

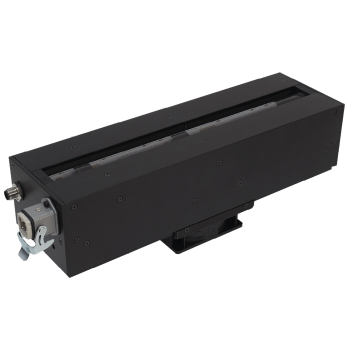

The BlackBright VNIR LED Bar has been developed specifically for the combined use with the BlackIndustry VNIR V2 camera. This broadband led illumination unit generates a homogeneous light distribution enabling very precise imaging in the spectral range 430 – 1050 nm.
BlackStudio is the powerful software behind the BlackIndustry camera series, included free of charge with every BlackIndustry camera purchase. It is designed for seamless integration and maximum flexibility with our hyperspectral cameras. Whether in the food industry, recycling industry or any other optical sorting application – BlackStudio delivers precise control, real-time data acquisition and advanced analysis tools tailored to your needs.
- Real-time data capture with four different livestream windows in the Capture tab
- Direct data analysis in the Analysis tab
- Easy data visualization with numerous customization options
- Create data snippets and save them in a separate database
- Train an individual classifier based on the recorded data
- Perform live classification, e.g. with the On-Camera Classifier tool
On-Camera Classifier
Our BlackIndustry cameras with software version 1.0.13 and later, now feature an on-camera classifier. The previously in BlackStudio trained classifier can be transferred directly to the camera, enabling real-time classification of newly captured data using the Classified Color output mode. This allows classification results to be used immediately in production without additional hardware. By transmitting only classified data, the feature reduces Ethernet bandwidth usage and eliminates processing overhead on the receiving device, ensuring efficient and streamlined operations.
- You have specific questions? Feel free to contact our support.
Implemented technology
/ Halcon
Our software integration with MVTec HALCON – For all BlackIndustry camera models.
MVTec HALCON enhances the capabilities of hyperspectral imaging systems by providing powerful tools for processing, analyzing, and interpreting hyperspectral data, enabling users to extract valuable information and insights from complex multidimensional datasets. By implementing the GenICam standard, data captured by HAIP products can be seamlessly received and utilised by MVTec’s software products.
